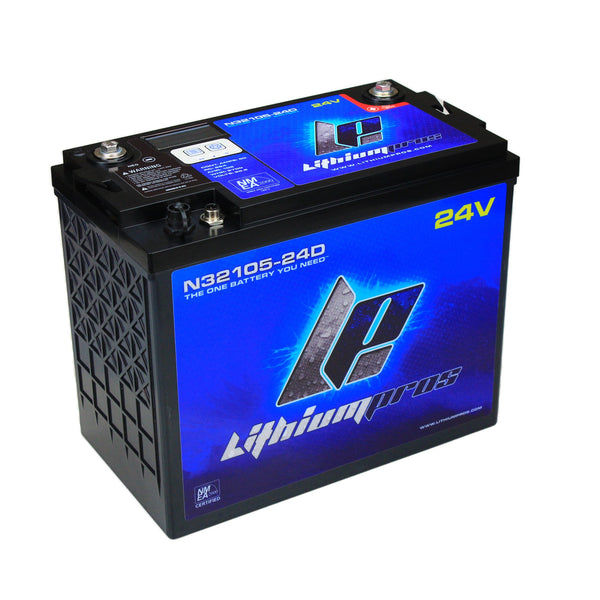

The N32105-24 is an advanced lithium ion battery made for 24V marine trolling application and includes the embedded BM-21 battery monitor. The result is a 46 lb Lithium Pros 25.6V 105Ah Lithium Ion Trolling Battery that is an amazing upgrade to any 24V trolling battery bank. It is also the world's first series of lithium-ion batteries to be NMEA 2000 Certified.
When you demand in the ultimate in equipment for your boat with the highest level of communication, the N series with NMEA 2000 connectivity is for you. The N32105-24 is perfect for demanding freshwater and saltwater tournament anglers using 24V trolling motors. At 46 lbs, it is hard to believe that ONE battery can do what three group 31 marine batteries* can.
In a flats boats and other shallow water fishing boats where weight is a premium, this is a fast and efficient way to take 170 lbs* out of the boat. A lighter boat is faster and more fuel efficient and can get into more places. Catch fish where your competitors can’t.
The BM-21 Embedded battery monitor is NMEA 2000 certified and features a micro port on the battery. It is directly addressable on the NMEA 2000 network and it is “plug and play” with all NMEA 2000 multi-function displays. The BM-21 reports all required PGNs as well as the three standard battery related PGNs: 127506, 127508, 127513, as well as alert PGN 126983. Simply select the individual battery from the NMEA 2000 device list and configure it.**
This puts the individual battery voltage, current, time remaining, state of charge, and temperature all on the network. In addition, the BM-21 also records warnings and alerts events with a real time/date stamp. Also, cumulative lifetime amp-hours are recorded. This information is available on the optional OLED display. (N series batteries with a "D" part number suffix include this display. The N32105-24D includes the OLED display.)
This battery features 250 reserve minutes, or enough power for extended trolling in one area from daylight to dark.^ In addition to that capacity, a on-board DC charger (from Lithium Pros, sold separately) can automatically recharge this trolling battery from the outboard engine’s charging system. Got another DC charge system like the CHARGE™ from Power-Pole? Great! Running a new brushless trolling motor too? You'll never find the bottom of this battery!
Imagine being able to troll all day long with only one battery! The N32105-24 battery is the same physical footprint as a typical group 31 battery, so it fits in most marine battery trays. (12.88″L x 7.13″ W x 10.50″ T) Installation is a snap and you are ready to go with a Lithium Pros battery that is “strong all day long.”
NOTE: A 25.6V LiFePO4 compatible battery charger is required.
*Group 31 marine battery assumed to be 205RC and 70 lbs.
** Check the MFD's documentation to insure it recognizes at least PGNs 127506 and 127508 for minimum compatibility.
^Assumes 50% setting on a Minn Kota motor and 50% duty cycle (usage) on the motor. Higher settings or a higher duty cycle (more usage, such as in wind or water current) will reduce this time.
